Presence Sensor Z1

Move beyond the limitations of traditional PIR motion sensors and last-generation radar-based devices. The new Tapestry Presence Sensor Z1 contains a state-of-the-art 60GHz radar module and machine-learning powered detection algorithm which enable best-in-class detection accuracy with a clean, modern look that is sure to fit in anywhere.

Why Z1?

Traditional motion sensors are excellent at detecting large movements such as a person walking into a room, but can’t detect people who are sitting, standing, or lying still. This can cause lights to go out while a room is still occupied, or result in them staying on unnecessarily for extended periods of time to ensure that a room is truly empty. Radar occupancy sensors solve this problem by detecting even the faint motions of fidgeting and breathing, so they can tell if a room is occupied even if you are sitting or standing still. Our neural-network based radar processing algorithm can distinguish people from other moving objects such as plants, ceiling fans, and curtains better than other last-generation radar occupancy sensors. And if you are getting false triggers, our exclusion zones feature lets you configure your Presence Z1 to match your specific use case by ignoring readings from certain locations in your room.

Our sleek, modern design is sure to complement any space. The high-quality Nylon enclosure hides the USB connector and seamlessly incorporates vents and indicator lights. Our wall mount comes with a damage-free pull-to-release adhesive strip, and offers screw mounting holes for permanent installations. The stand accessory includes built-in cable routing features for a clean look every time.

Incorporated temperature and humidity sensors add a new level of home monitoring. Painstakingly compensated to give accurate readings that you can rely on, use this data to let your home respond to environmental changes or gain new insights into how the climate in each room varies throughout the day or year.

Zigbee compatibility ensures flawless connectivity throughout your entire home without congesting your Wifi network. Zigbee devices form a mesh network that can extend beyond the range of any single hub or base station allowing for reliable, full-home coverage.

Features

• Precise radar-based presence detection detects occupancy even when sitting or standing still

• Integrated temperature and humidity sensors enable you to monitor your home's environment, control the climate on a room-by-room basis, or trigger automations

• No-nonsense setup makes it quick and easy to get running, with no threshold tuning or fiddling

• Clean design fits in any space and hides USB connector within housing

• Mounting plate pass-through allows optional hidden cable routing through wall cutout

• Download User Manual

Included

• Tapestry Presence Sensor Z1

• Stand and/or wall mount, depending on configuration

• Power adapter and cable

Specs

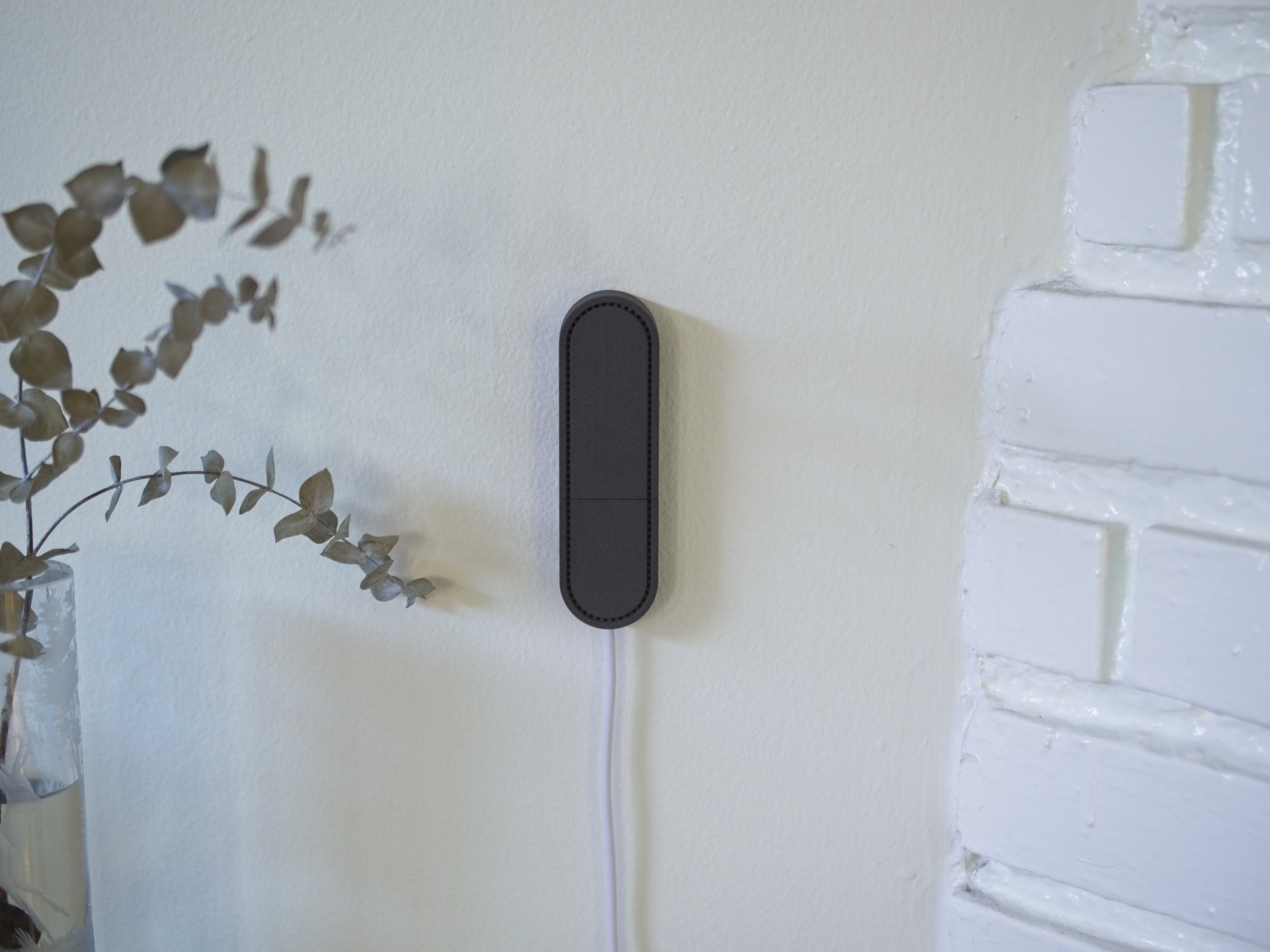

Wall or free standing mounting options provided. Wall mount includes removable adhesive mounting, as well as the option to be attached with screws for permanent mounting

Powered over USB-C. 2m cable and wall adapter included.

120 deg FOV

7 meter (approximately 21 ft) maximum range

Device (without mounting accessories) measures approximately 4.75” tall by 1.4” wide by .6” thick

Compatibility

This device implements the Zigbee transport protocol, and has been tested with Deconz, Sonoff Zigbee 3.0 adapter, Skyconnect, ZHA, Zigbee2MQTT, Amazon Echo (limited functionality, see user manual for details), SmartThings Hub

A Zigbee hub is NOT INCLUDED and is required for operation

Note that this device is not intended for use as part of a security system
